WDMX Transmitter 500IP

IP65 for indoor and outdoor use

Powered by LumenRadio

Supports CRMX and W-DMX protocols

Adaptive frequency hopping

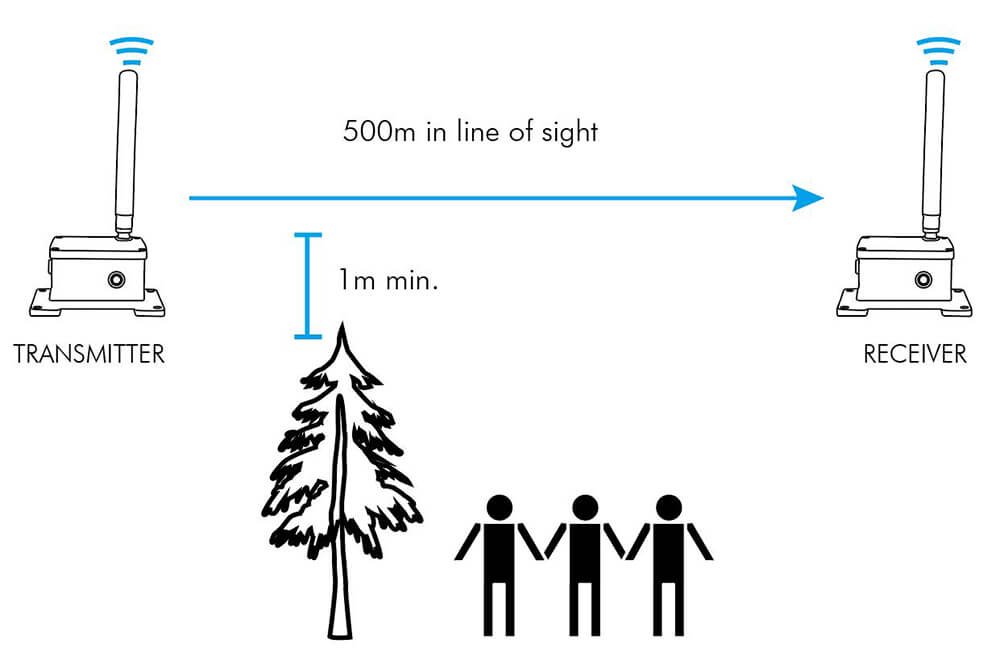

Transmission range: 500m  (line-of-sight)

Latency: < 5mS

Quick and easy setup

Specifications
Wireless DMX Transmitter
IP65 for indoor and outdoor use
Powered by Lumenradio
Supports CRMX and W-DMX protocols
Worldwide 2.4 GHz Radio-License free
Transmission range: 500m  (line-of-sight)
Number of DMX channel: 512 (1 universe)
DMX Universes in coexistence: 16 max.
One-button-go, simple setup
100% electrical isolation

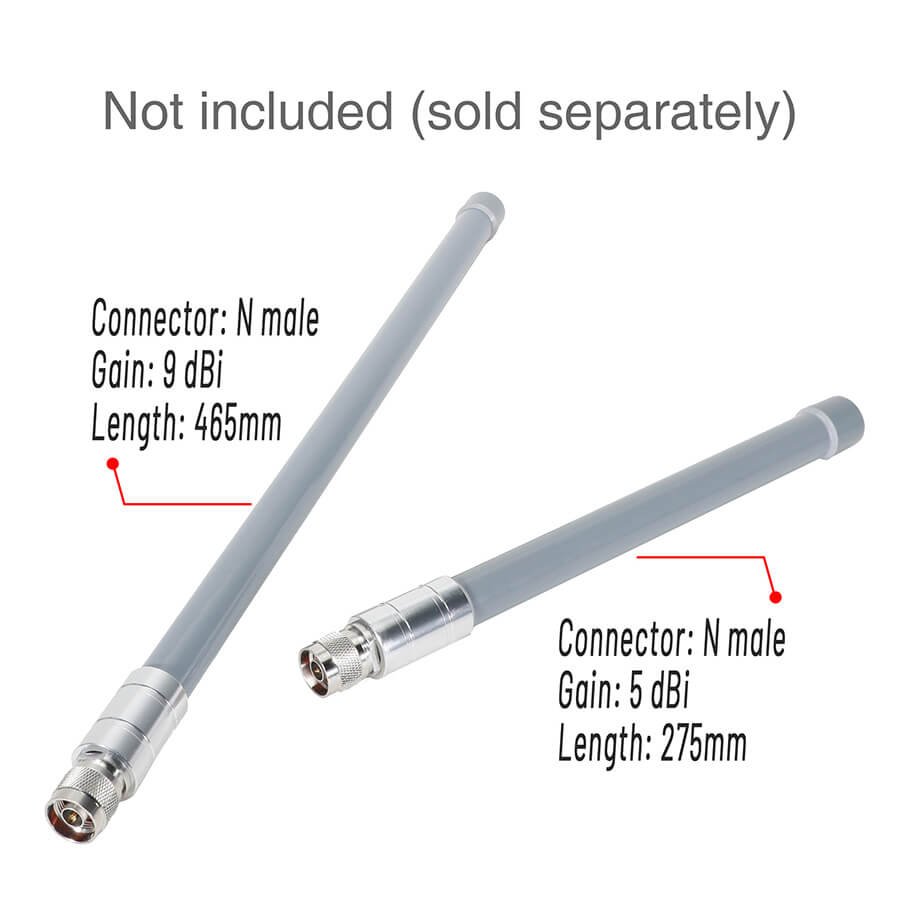

Antenna type: 5dBi
Latency: < 5mS

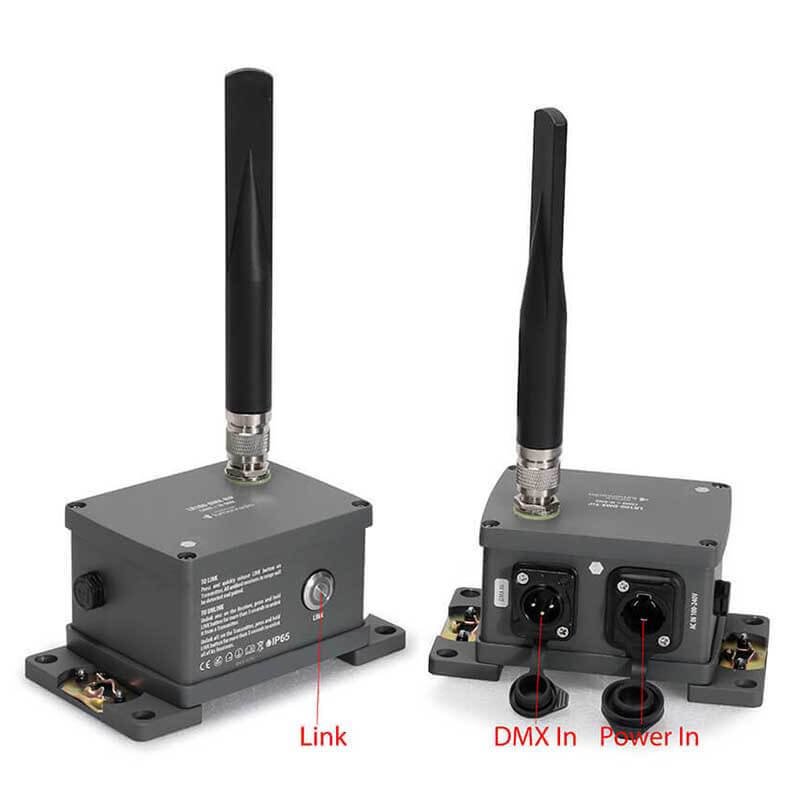

Power connector: PowerCON True1
Signal connector: 3Pin or 5Pin XLR male

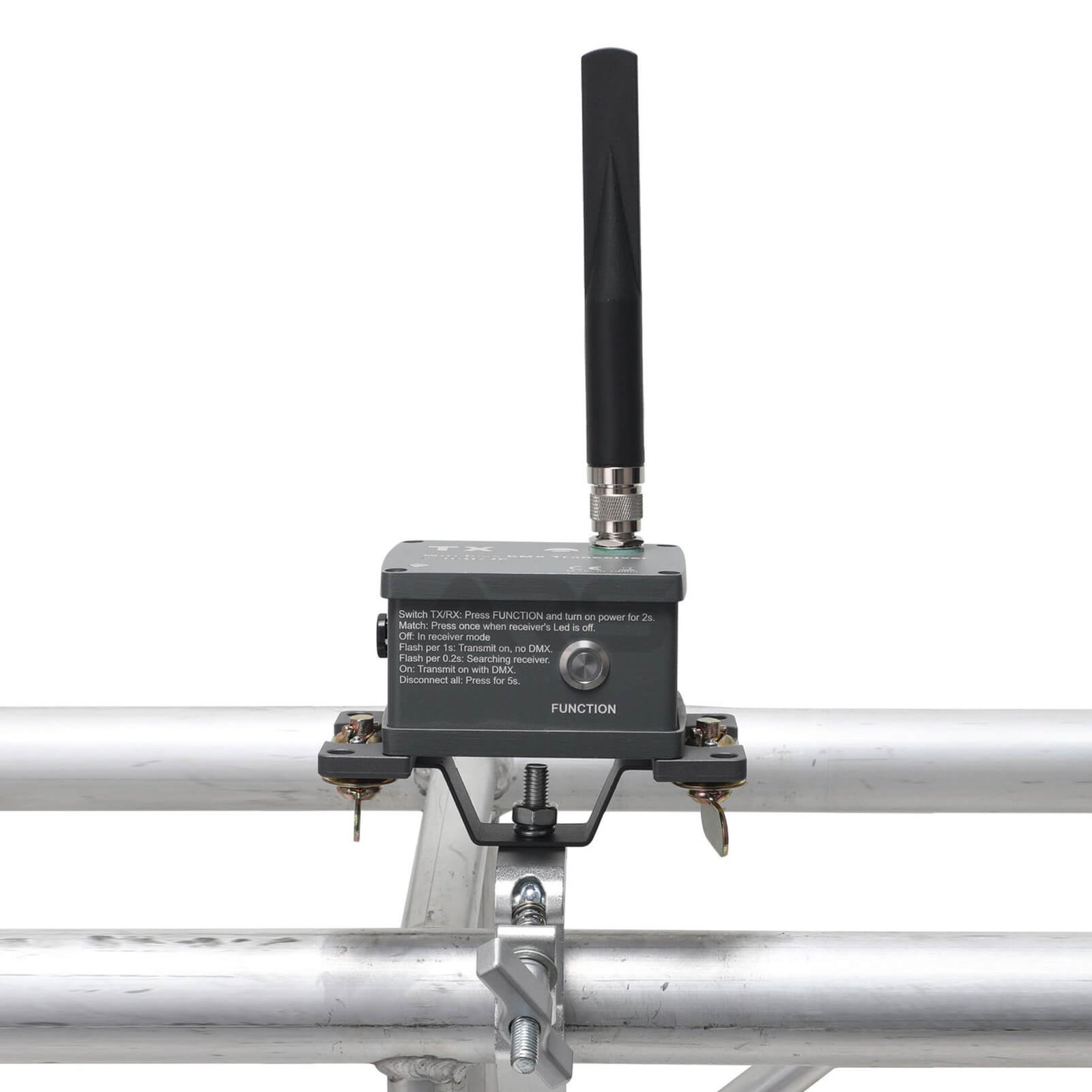

Mounting: Truss mounting bracket included
Power input: AC 100-240V
Dimension: 135x90x265 mm
Weight: 1.0 kg

What's Included

1 x Transmitter/Receiver
1 x Antenna 5 dBi
1 x Power cable
1 x Mounting bracket
1 x User Manual

FAQ

1. Does this ArtNet nodes support support both Art-Net and sACN?
Yes it does.

2. How does this ARTNET-DMX 2 support RDM?
Yes it does.

3. Does this Art-Net nodes support PoE (Power over Ethernet)?
Yes it does.
