WDMX TX500DUO

2 universes Wireless DMX Transceiver

Powered by LumenRadio

Supports CRMX and W-DMX protocols

Adaptive frequency hopping

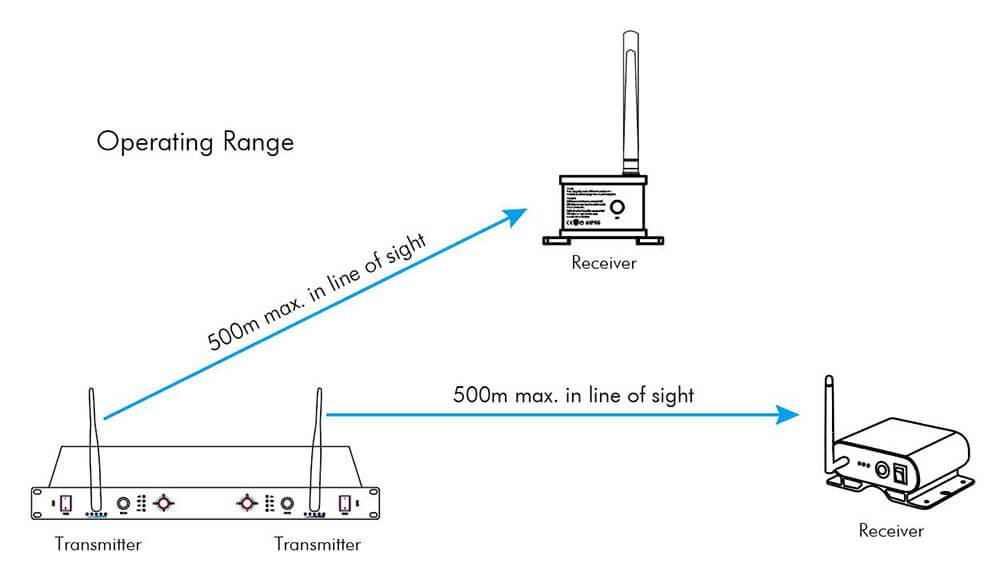

Transmission range: 500m  (line-of-sight)

Latency: < 5mS

Quick and easy setup

Powered by LumenRadio, the Wireless Transmitter and Receiver from COLORNITE are reliable and affordable wireless DMX devices on the market. It supports Lumenradio CRMX and W-DMX protocols. With one-button-to-go, the system is truly plug and play. Key features are Data-Safe, AFHSS, One-Button-to-Go, etc.

Specifications
2 universes Wireless DMX Transceiver
Switchable between Transmitter and Receiver
Powered by LumenRadio
Supports CRMX and W-DMX protocols
Worldwide 2.4 GHz Radio-License free
Transmission range: 500m  (line-of-sight)
Number of DMX channel: 1024 (2 universe)
DMX Universes in coexistence: 16 max.
100% electrical isolation
Antenna type: 5dBi
Latency: < 5mS
Power connector: PowerCON (powerCON True1 optional)
Signal connector: 3Pin or 5Pin XLR Male & Female
IP20 for indoor use only
Power In: AC 100-240V 50/60Hz
Dimension: 482*147*44 mm
Weight: 3.0 kg

What's Included

1 x WDMX TX500Duo
1 x Power cable
2 x Antenna
1 x User Manual

wireless dmx packing list
