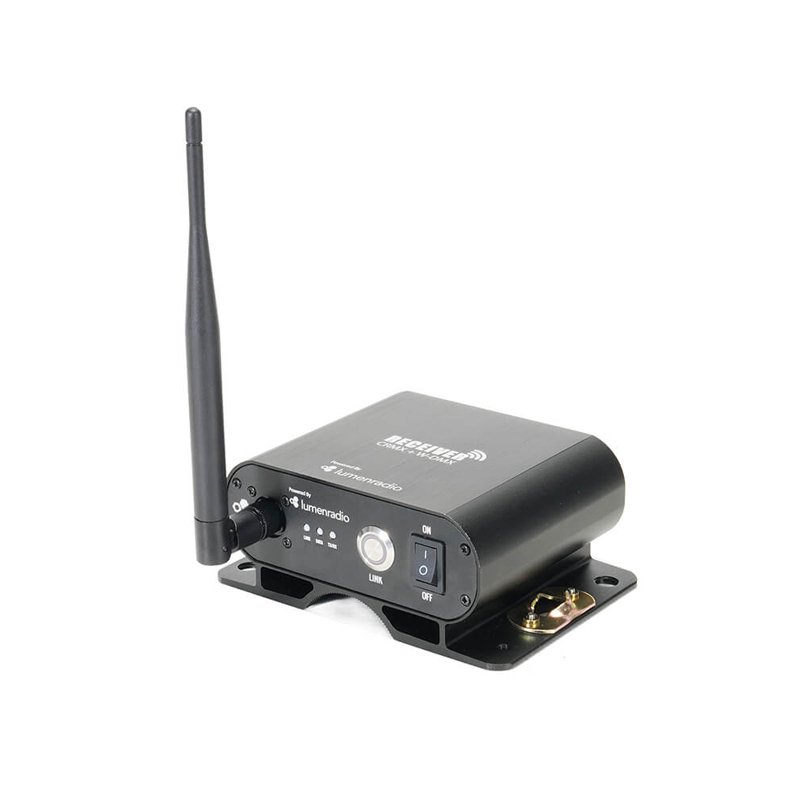

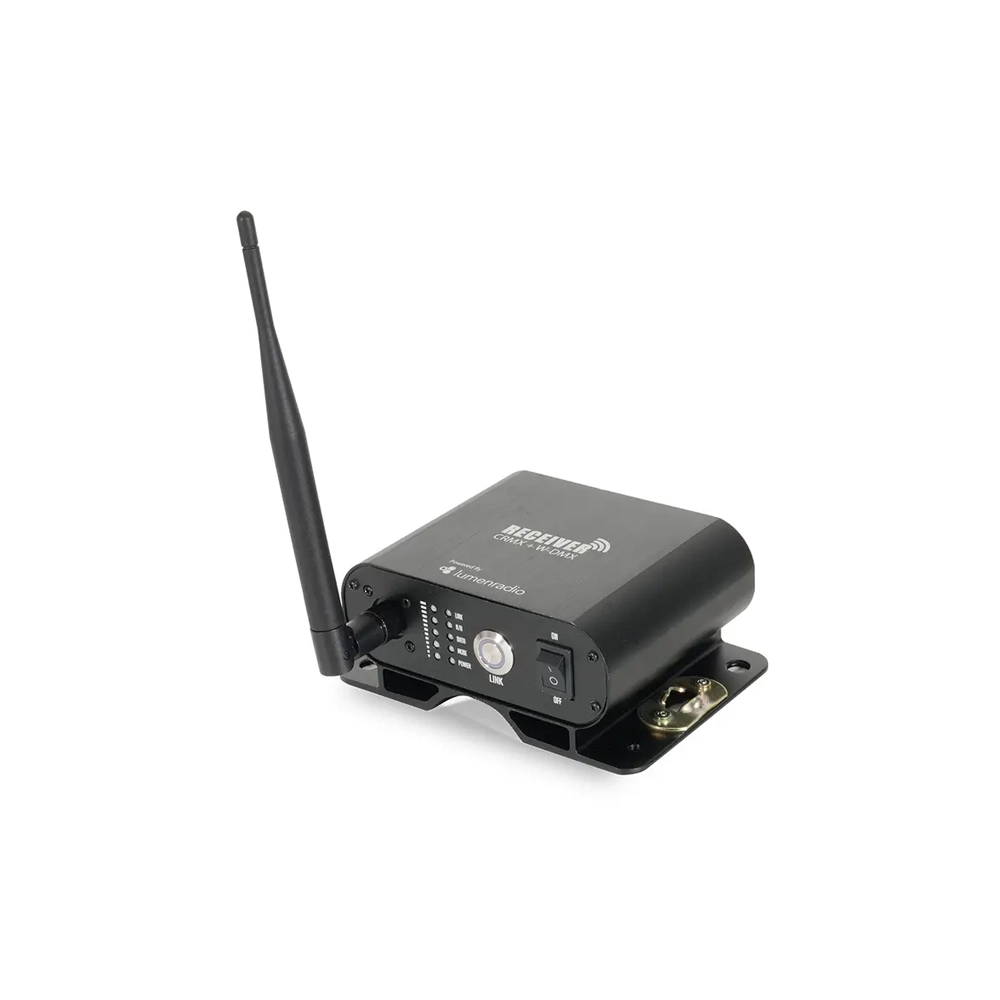

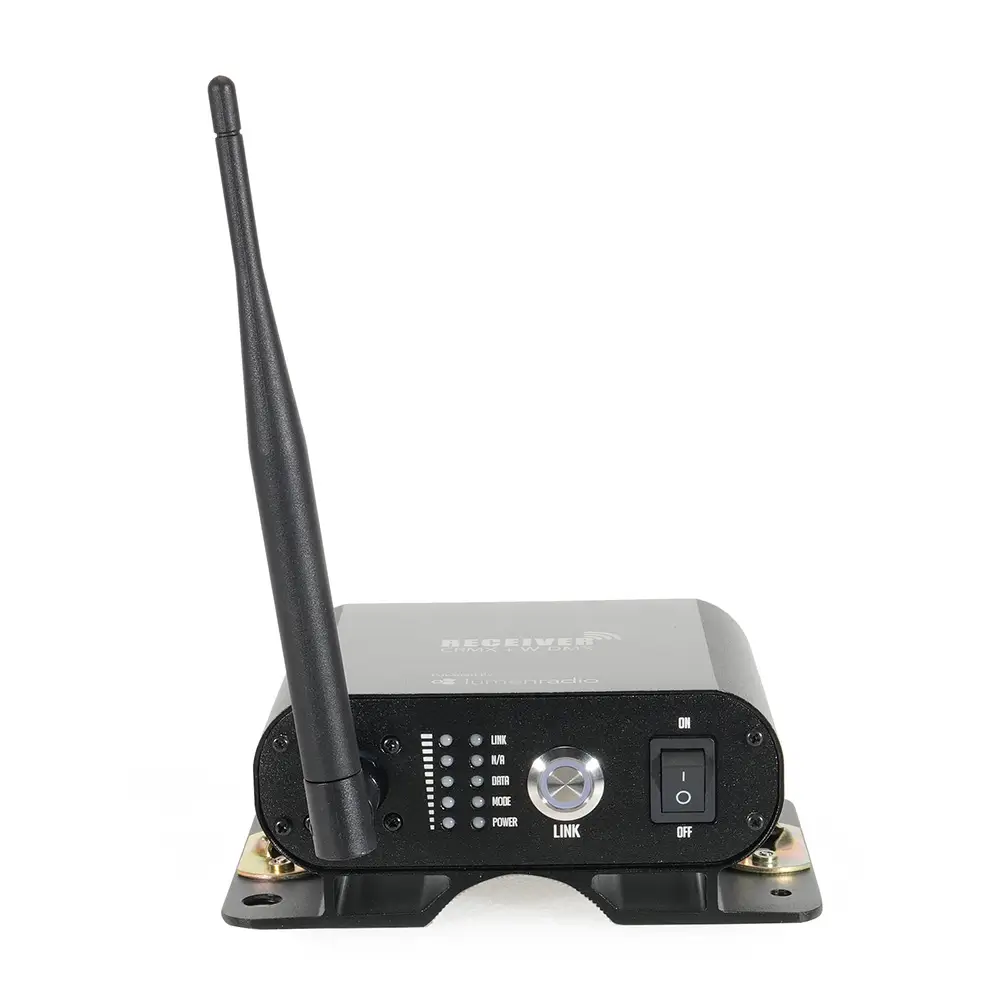

WDMX Receiver 500

Powered by LumenRadio

Supports CRMX and W-DMX protocols

Adaptive frequency hopping

Transmission range: 500m  (line-of-sight)

Latency: < 5mS

Quick and easy setup

Powered by LumenRadio, the Wireless Transmitter and Receiver from COLORNITE are reliable and affordable wireless DMX devices on the market. It supports Lumenradio CRMX and W-DMX protocols. With one-button-to-go, the system is truely plug and play. Key features are Data-Safe, AFHSS,RDM, One-Button-to-Go,etc.

Specifications
Wireless DMX Receiver only
Powered by LumenRadio
Supports CRMX and W-DMX protocols
Worldwide 2.4 GHz Radio-License free
Transmission range: 500m  (line-of-sight)
Number of DMX channel: 512 (1 universe)
DMX Universes in coexistence: 16 max.
One-button-go, simple setup
100% electrical isolation
Antenna type: 5dBi
Latency: < 5mS

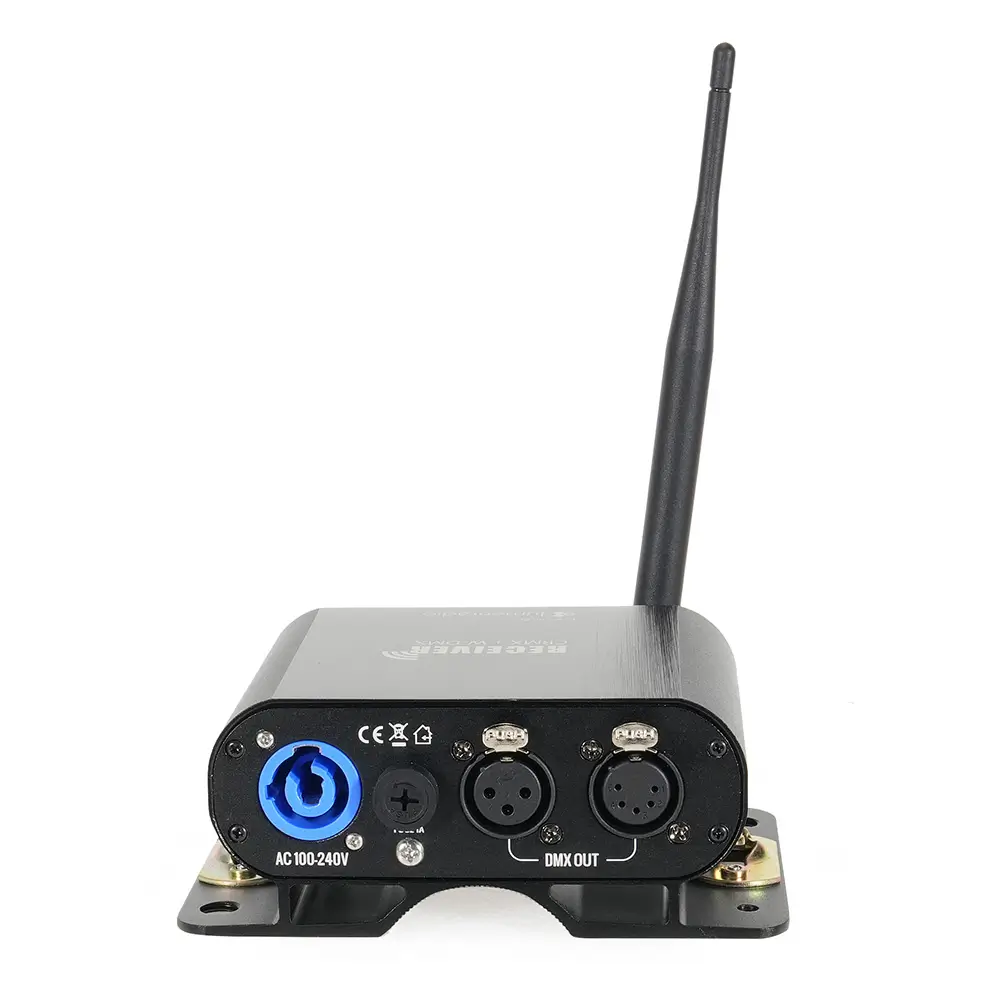

Power connector: PowerCON (PowerCON True1 optional)
Signal connector: 3Pin or 5Pin XLR Male & Female
IP20 for indoor use only
Power In: AC 100-240V 50/60Hz
Dimension: 145*100*57 mm
Weight: 1.20 kg

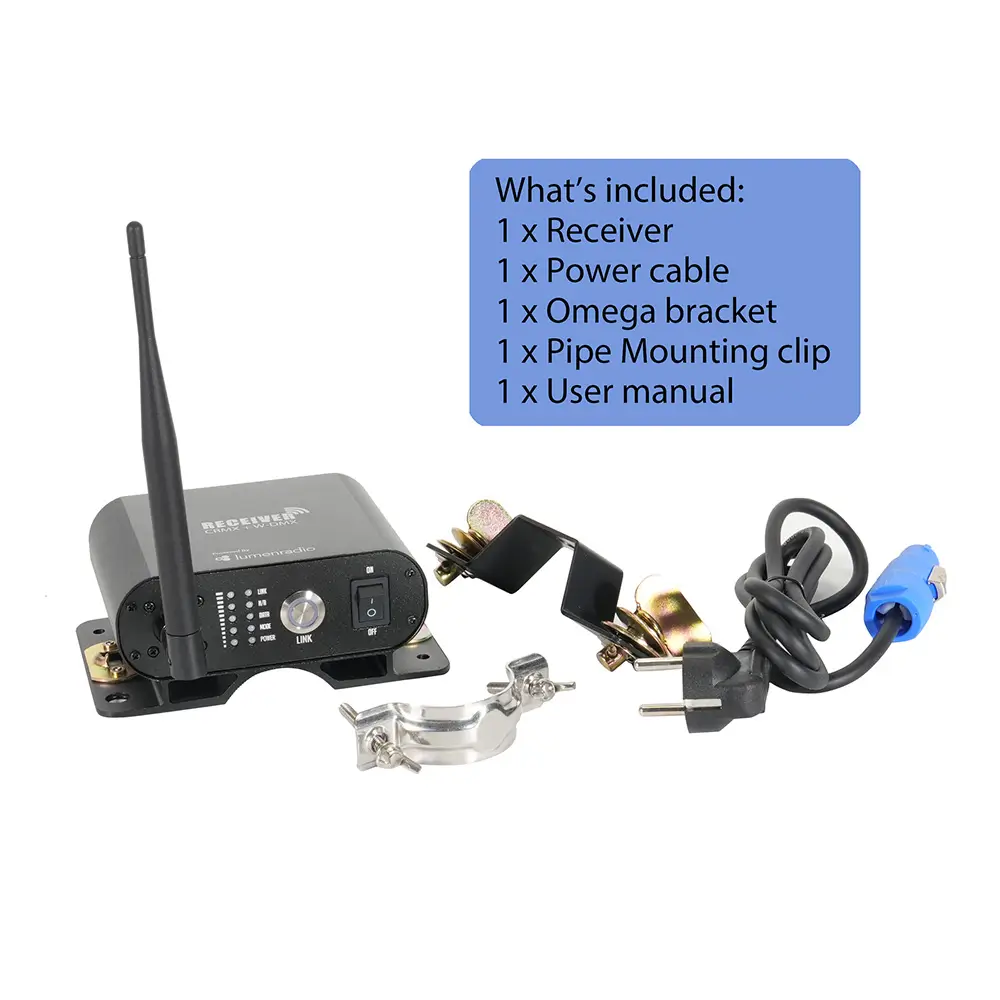

What's Included

1 x Transceiver or Receiver
1 x Power cable
1 x Antenna
1 x Mounting bracket
1 x User Manual

wireless dmx packing list
