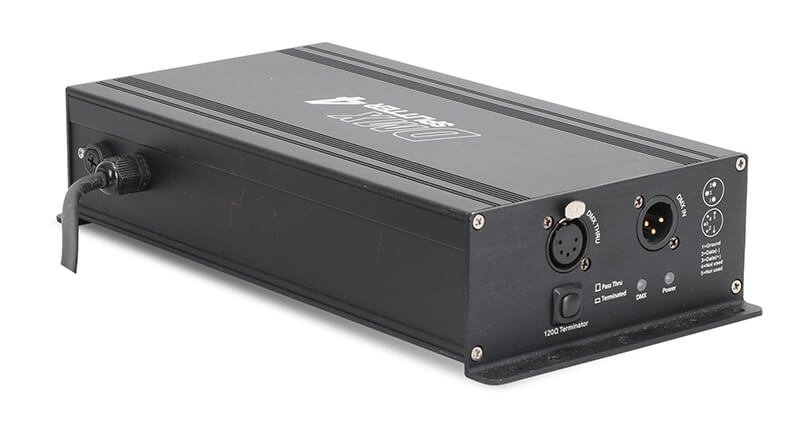

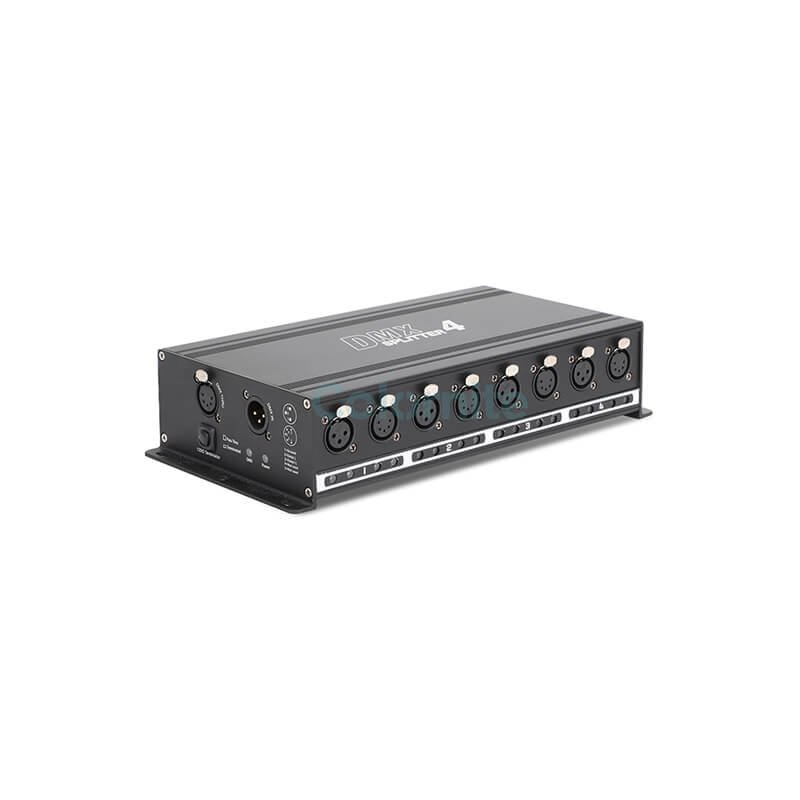

DMX signal booster & splitter
1 DMX input to 4 DMX outputs
Fully compliant to DMX-512 (1990)
100% optical isolation
Boost and regenerate signal before distributing
DMX line can be terminated at press of a button

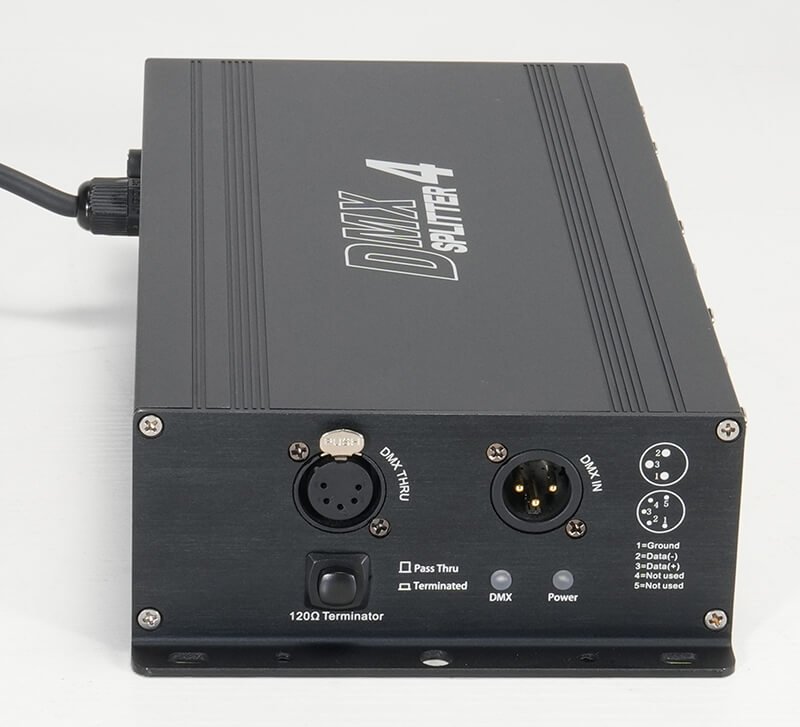

DMX Input: 3pix & 5pin XLR in
DMX Thru: 3pix & 5pin XLR out

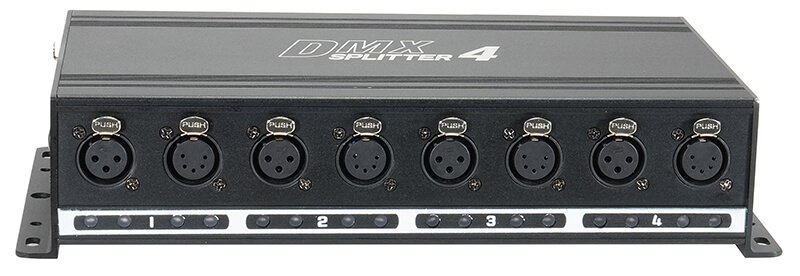

DMX Out: 8 x 3pin & 5pin XLR out
Power input: AC 110V / 230V 50-60Hz
Dimension: 260 x 145 x 63 mm
Weight: 2 kg
