A DMX Signal Booster/Splitter is an useful tool for lighting operation. When you have more than 32 fixtures on a daisy chain or long cable run more than 100 meters, the DMX signal may be compromised or weakened. Then a DMX Signal Booster/Splitter reduces reflection problem and boost the signal to keep high level of reliability. Additionally, it simplify cable running and protect your devices against transient over voltage.
Specifications
DMX signal booster & splitter

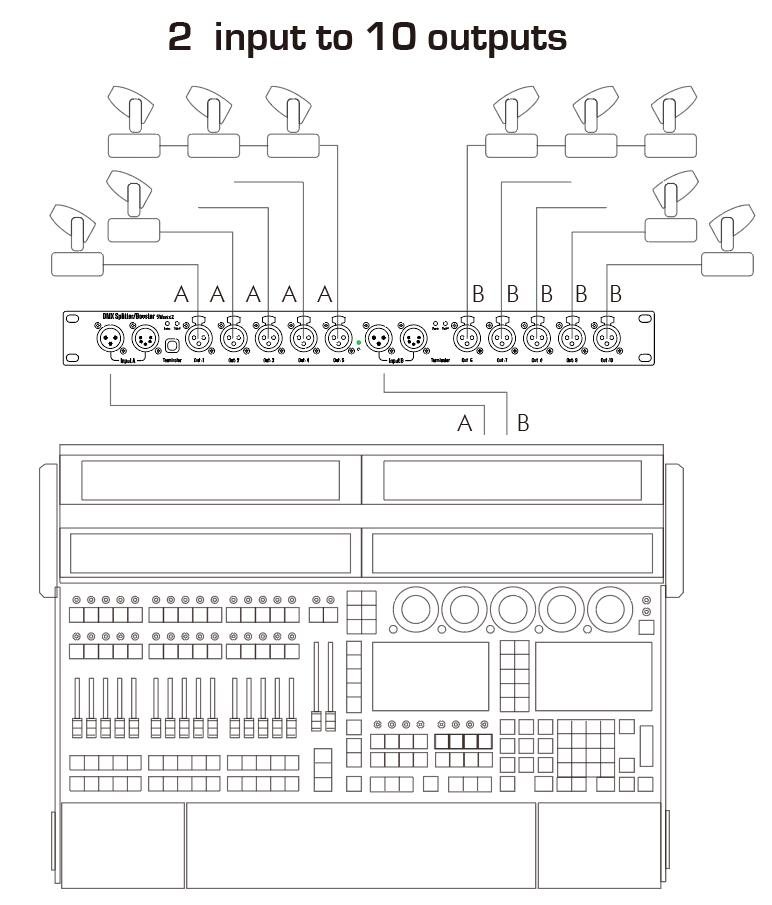

Switchable between 1 in-to-10 outs and 2 in x 5 outs
Fully compliant to DMX-512 (1990)
100% optical isolation
Boost and regenerate signal before distributing
DMX line can be terminated at press of a button
DMX Input: 3pix & 5pin XLR in from front and back panels

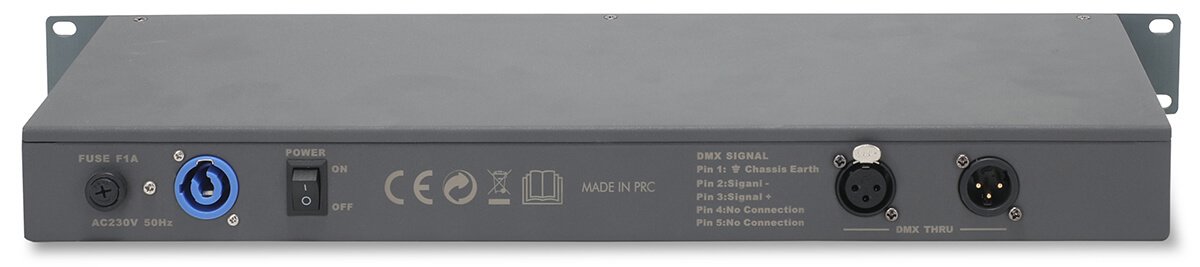

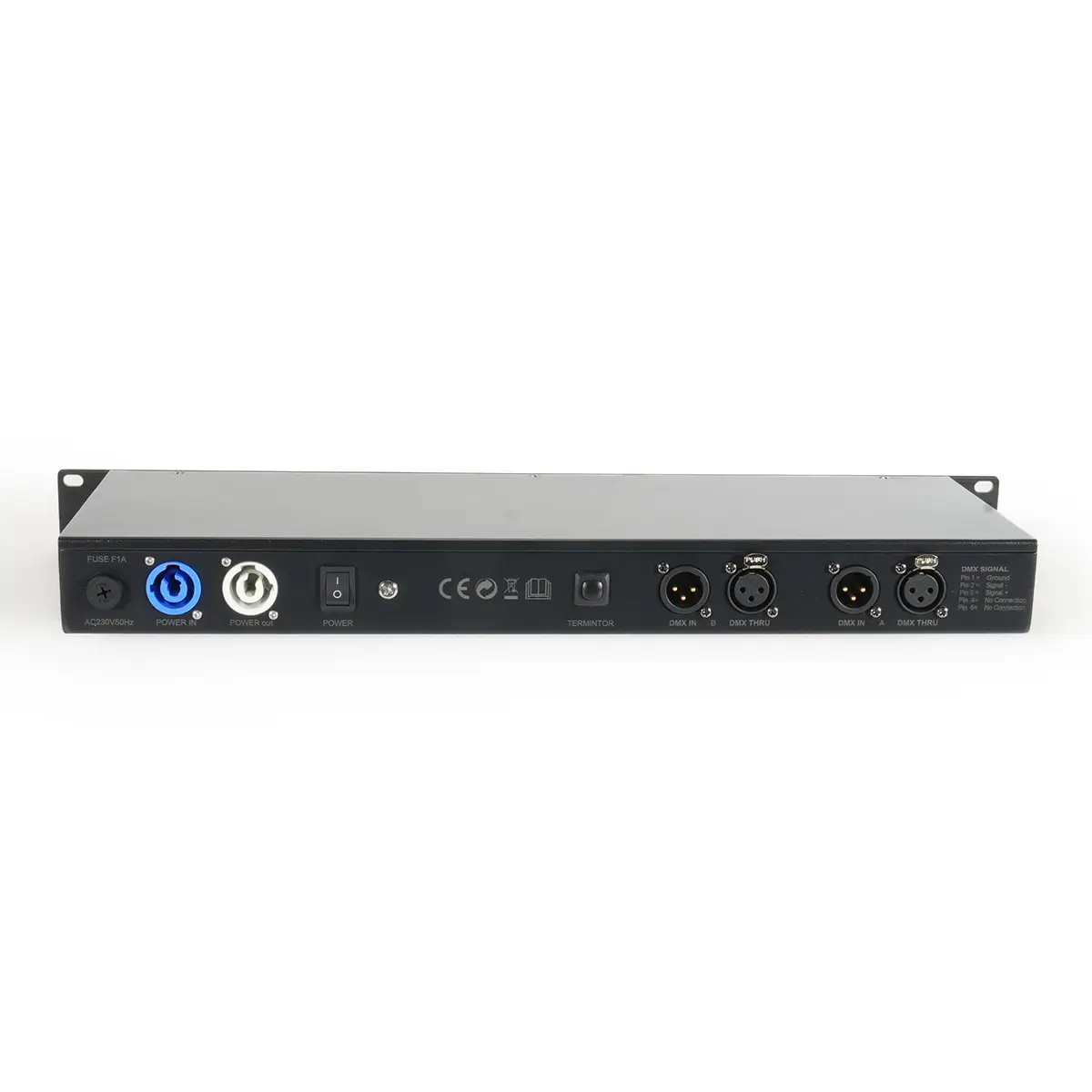

DMX Thru: 3pix & 5pin XLR out from back panel

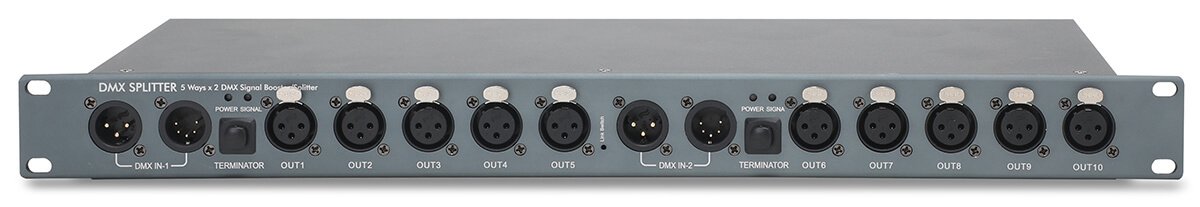

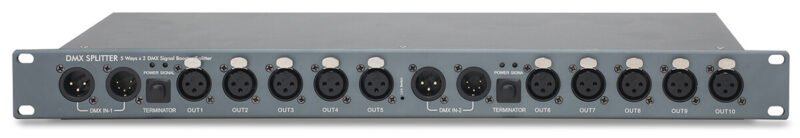

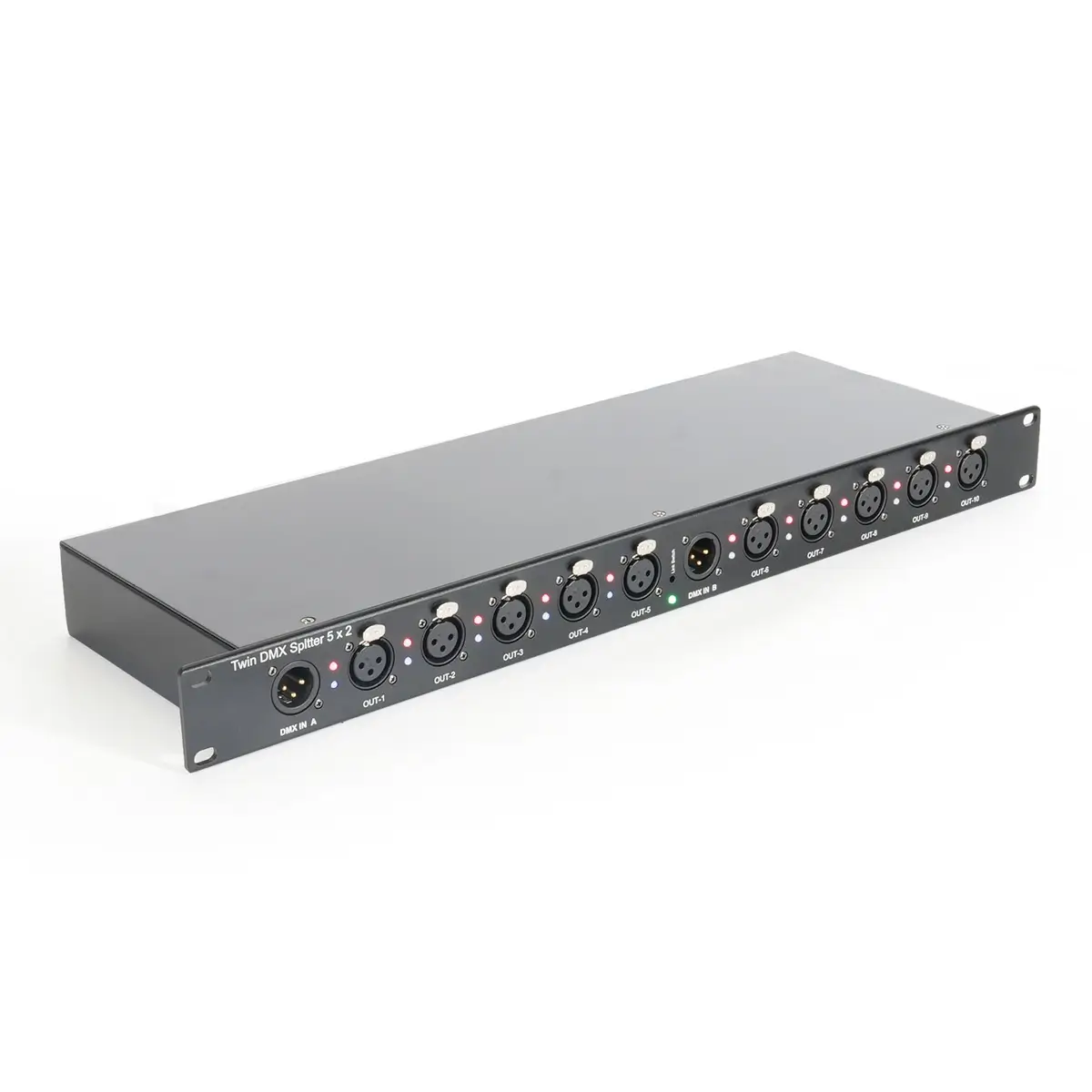

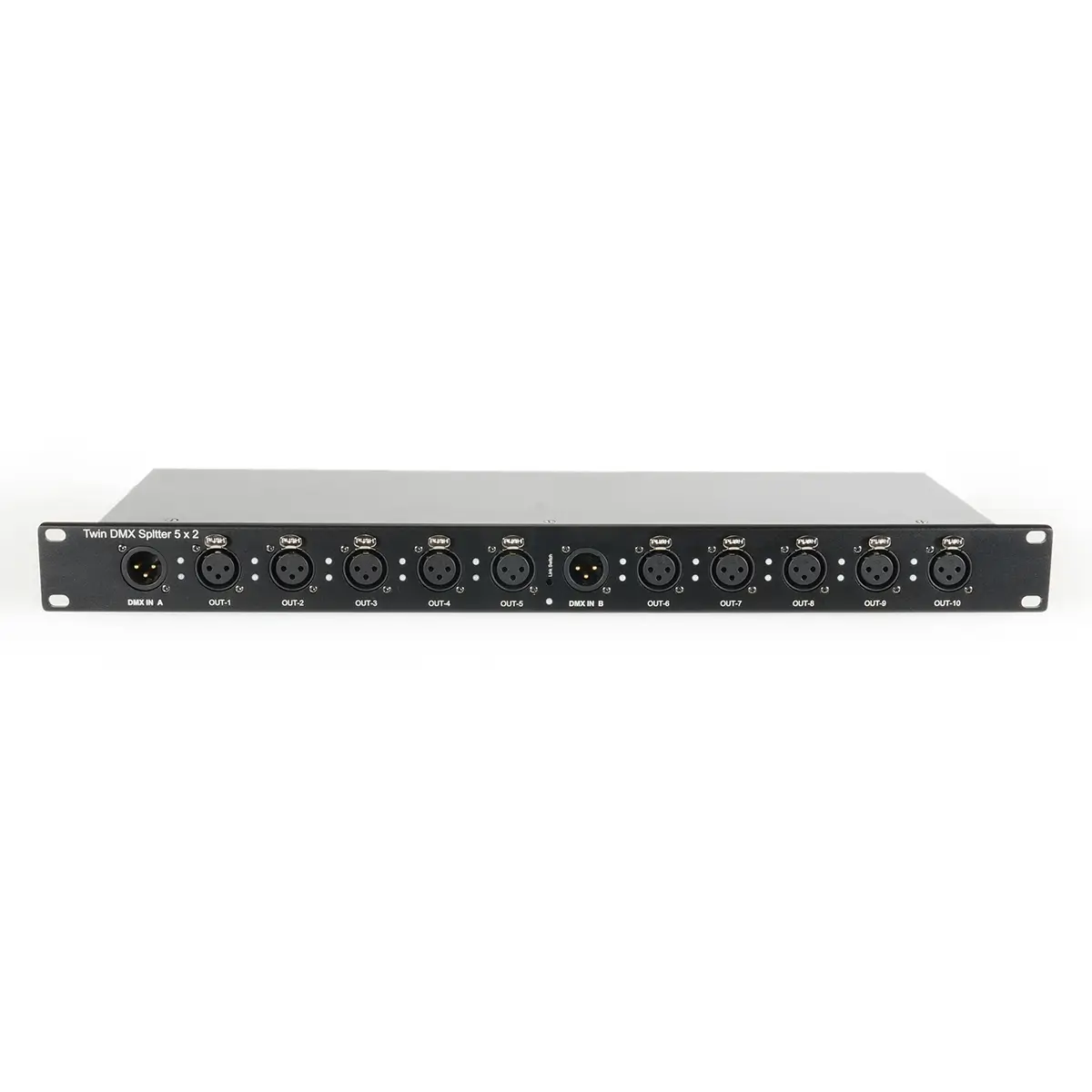

DMX Out: 10 x 3pin or 5pin XLR out from front panel
Power: PowerCon In & Out
Power and signal indicator for each input and output
Power input: AC 110V / 230V 50-60Hz
Dimension: 482x167x44 mm (1U rack mount)
Weight: 3.0 kg
