A DMX recorder/replay is a great tool for those who do not need a full-featured and expensive lighting console. In some cases, one just need to run a small show or scenes with simple button press. No need a lighting programmer or operator sometimes. Ideal for permanent installations (architectural lighting, theme parks, museums) where the lighting needs to run the same way daily.
Specifications
Supports ArtNet and DMX
1024 channels (2 DMX universes)
Real-time record and replay of DMX and Art-Net signals

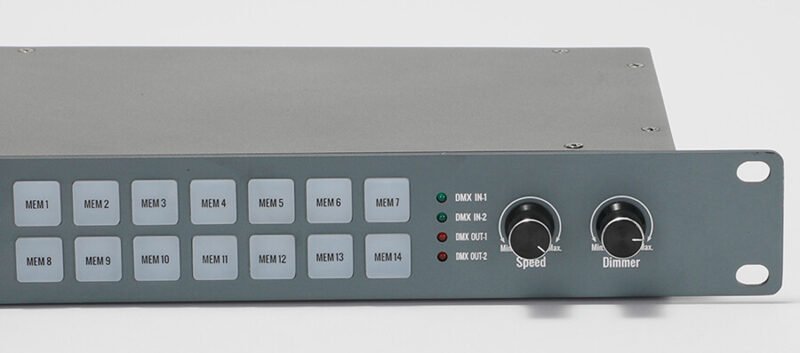

14 memory locations with up to 20 hours recording capacity
Replay can run in solo or loop mode
Replay via control buttons or TouchOSC on smart phone
Bridge modes:
>DMX In to DMX Out: DMX signal booster
>DMX In to Lan: DMX signal input, then output Artnet signal from RJ45 socket
>Lan to DMX Out: Artnet input via RJ45 and then DMX signal output from XLR
>WiFi to DMX Out: Artnet input via wifi and then DMX signal output from XLR
>WiFi to Lan: Artnet input via wifi and then Artnet output from RJ45 socket
>DMX merge (HTP / LTP / override / backup): 2 DMX inputs to 1 DMX output
32G SD card included
Power consumption: 6w max.
Power In: AC 100-240V 50-60Hz
Dimension: 482*147*44 mm (1U rack mount)
Weight: 2 kg
