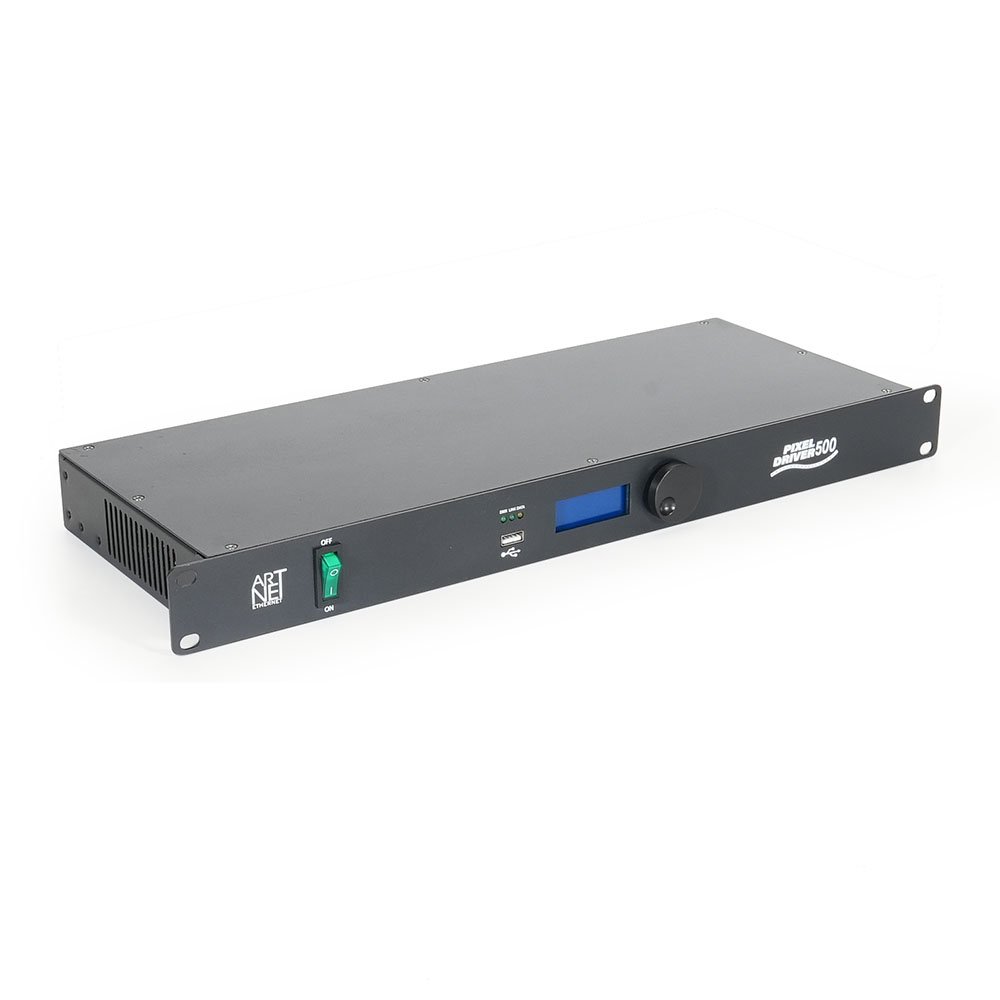

Pixel Driver 500

The Pixel Driver 500 is a versatile device for entertainment and architecture application. It supports ArtNet and DMX. With 4 DMX outputs, it can convert ArtNet into 4 x 512 DMX channels for stage lights (Moving Heads, Par Lights, Bar/Batten, Strobes). Besides, it comes with 4 x 4-Pin XLR for Pixel DMX Tape light. Multi DMX channel modes makes programming for Pixel tape a breeze.

Specifications
Supports ArtNet(ArtNet4) and DMX
4 DMX outputs for DMX devices (4×512 channels)
4 LED outputs for DMX Pixel Tape (Each 170 RGB/128 RGBW pixels)
1 RJ45 TCP/IP 10/100M Ethernet connectors for ArtNet

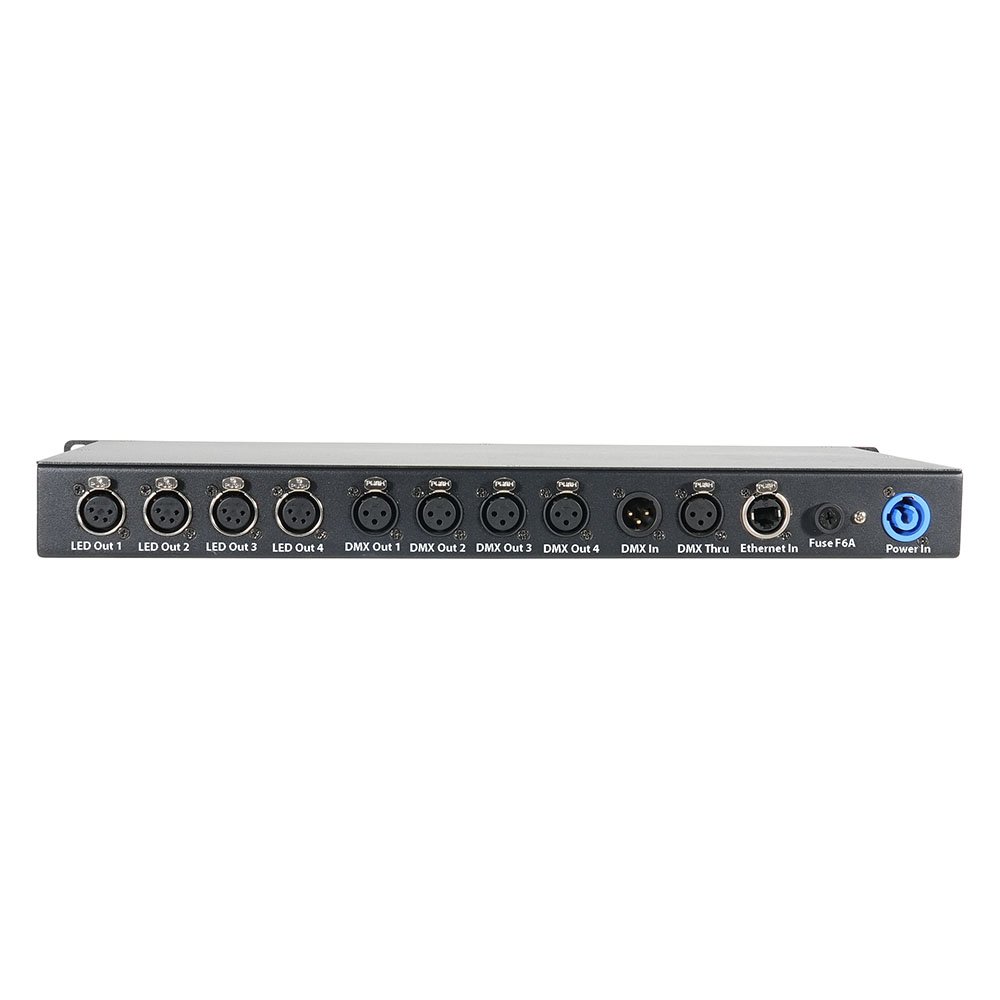

3Pin/5Pin XLR In & Thru
4 x 3Pin/5Pin XLR Outs (for DMX)
4 x 4Pin XLR Outs (for LED)
USB port for firmware updating
DMX channel modes for LED: 3ch, 4ch, 7ch, pixel mode
500W/24V DC MEANWELL fanless Power Supply inside
Supports chips for LED tape: WS2812B，TM512AC
Power input: AC 100-240V 50/60Hz
Dimensions: 482 x 183 x 44 mm (1U)
Weight: 3.12 kg

What's Included

1 x Pixel Driver 500, 1 x Power cable, 1 x User manual

FAQ

1. Does the DRIVER support both Art-Net and sACN?
No, it does not support sACN at the moment.

2. How does this DRIVER support RDM?
No, it does not support RDM at the moment.

3. How do I set IP address for this node?

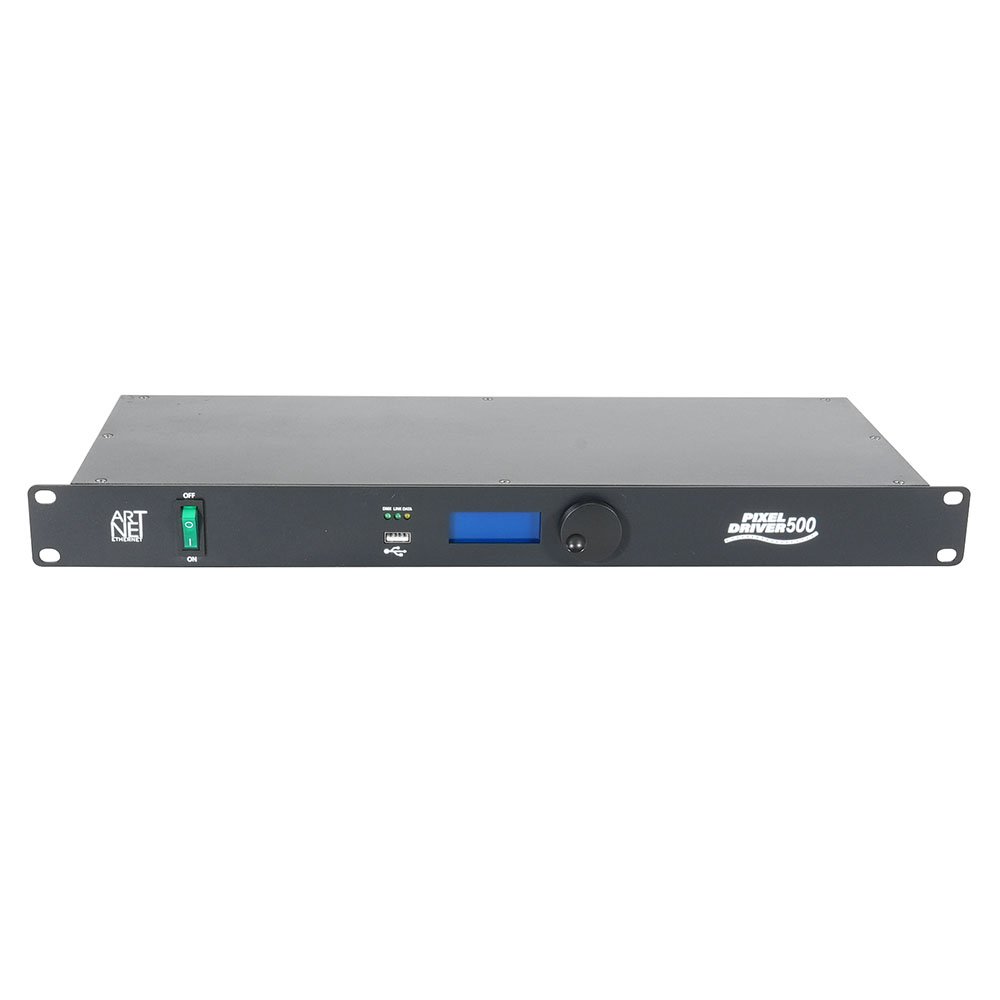

You can set IP address manually via display and encoder knob easily.

4. What IP address should I use for an Art-Net network?
The standard Art-Net IP range is 2.x.x.x (e.g., 2.0.0.10) with a subnet mask of 255.0.0.0. However, some setups use the 10.x.x.x range for better compatibility with modern networks.

5. My Art-Net node is not receiving data. What should I check?
- Check the IP address settings (must be in the correct range).
- Ensure the software is sending Art-Net data (use an Art-Net monitor tool).
- Disable firewalls that may block UDP traffic.
- Verify physical connections (Ethernet cables, switches, and routers).
- Confirm the correct universe assignment in both software and the node.
