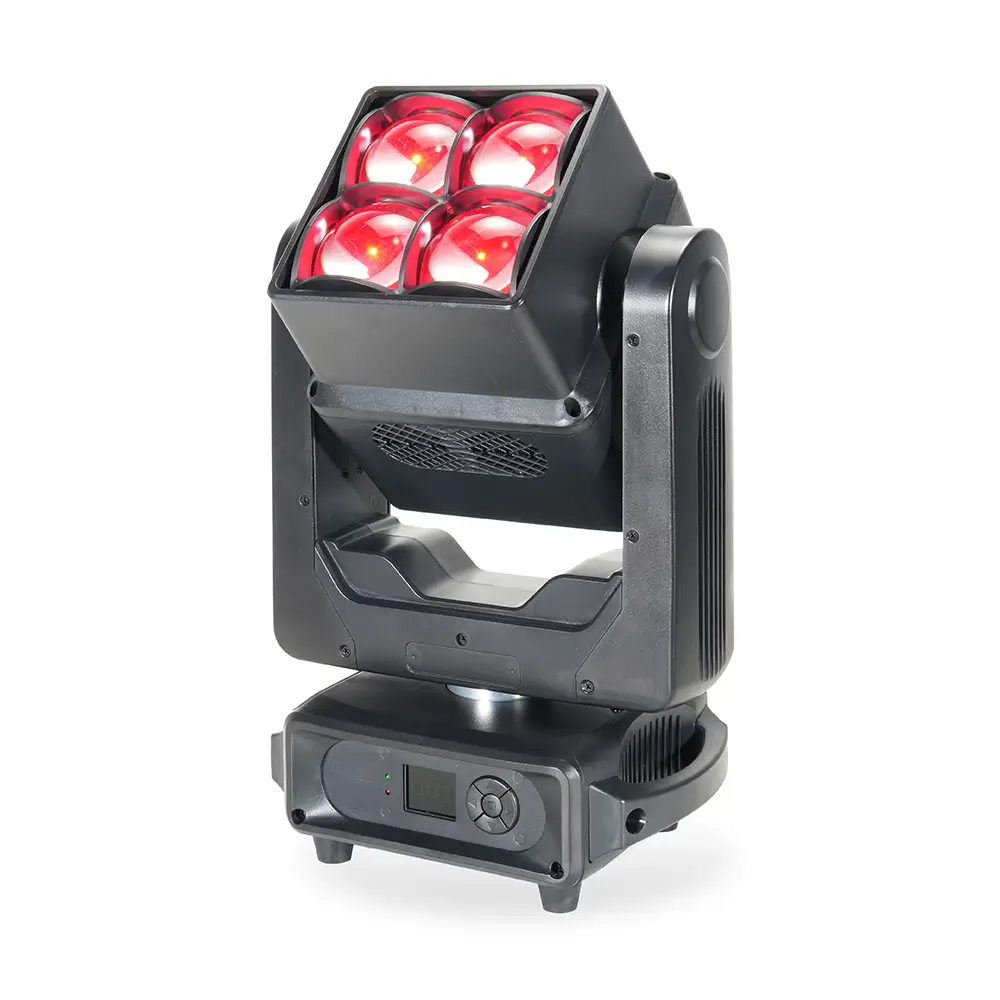

Double-Side 460Z is an all-in-one double-sided moving head light featuring Beam, Wash, Strobe and FX effects. It is fitted with multiple RGBW & white LED arrays with pixel mapping, 4°–38° motorized zoom, 540° pan/tilt (endless rotation optional), smooth linear dimming and adjustable electronic strobe. Supporting DMX, RDM, Artnet and sACN, this compact lightweight fixture fits stages, clubs and live events perfectly.
Specifications

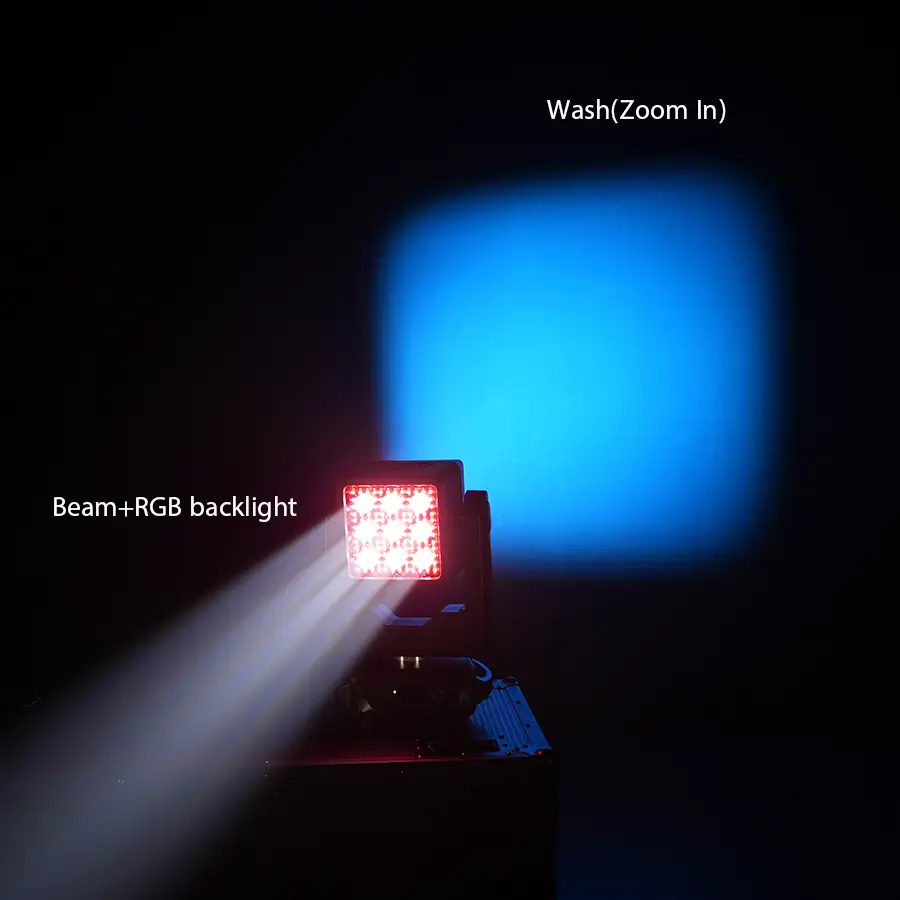

Side A: 4*60W RGBW 4-in-1 LEDs for punchy wash and rich color mixing

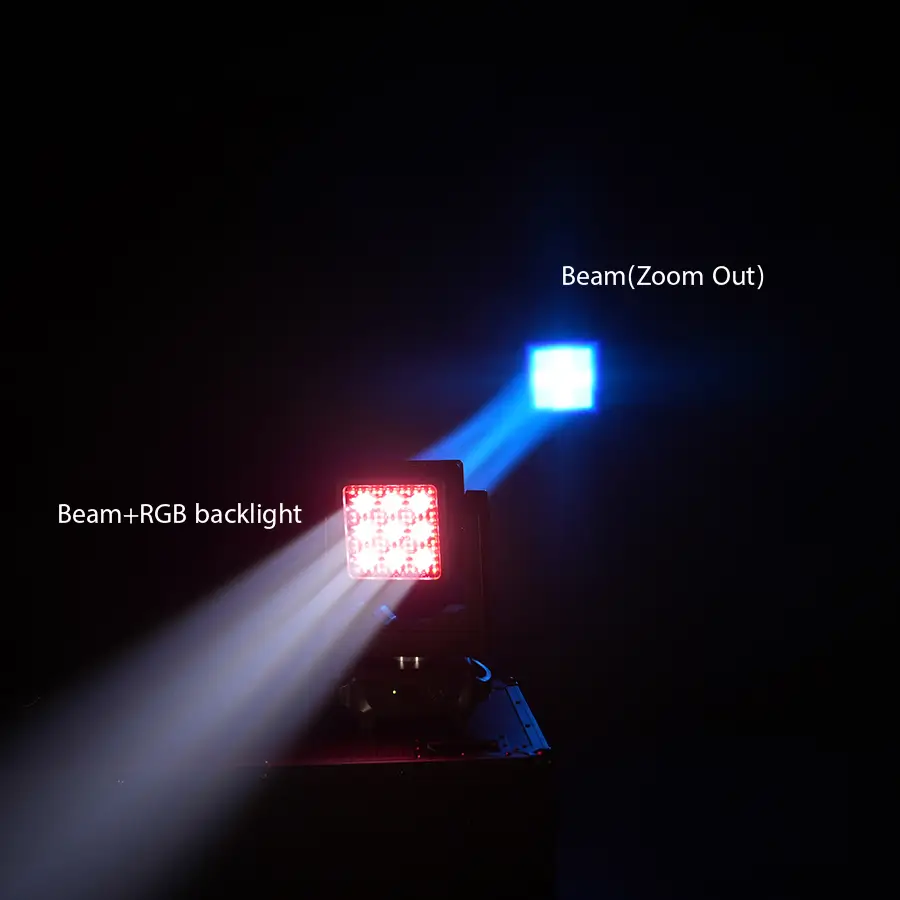

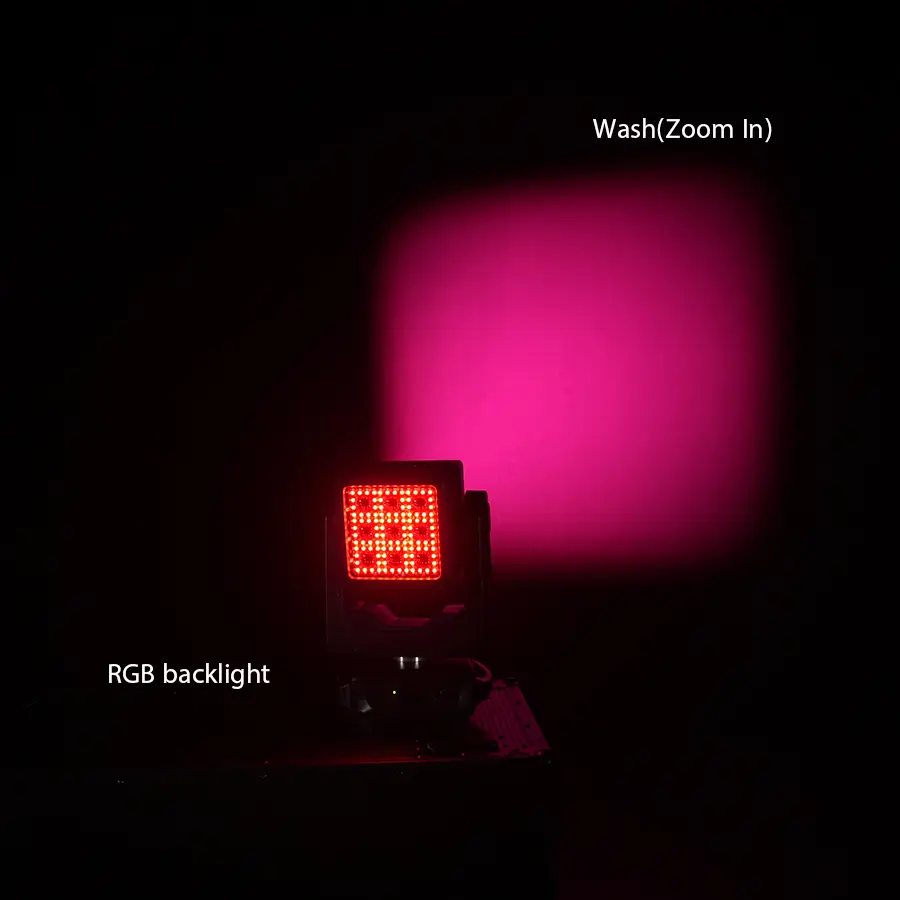

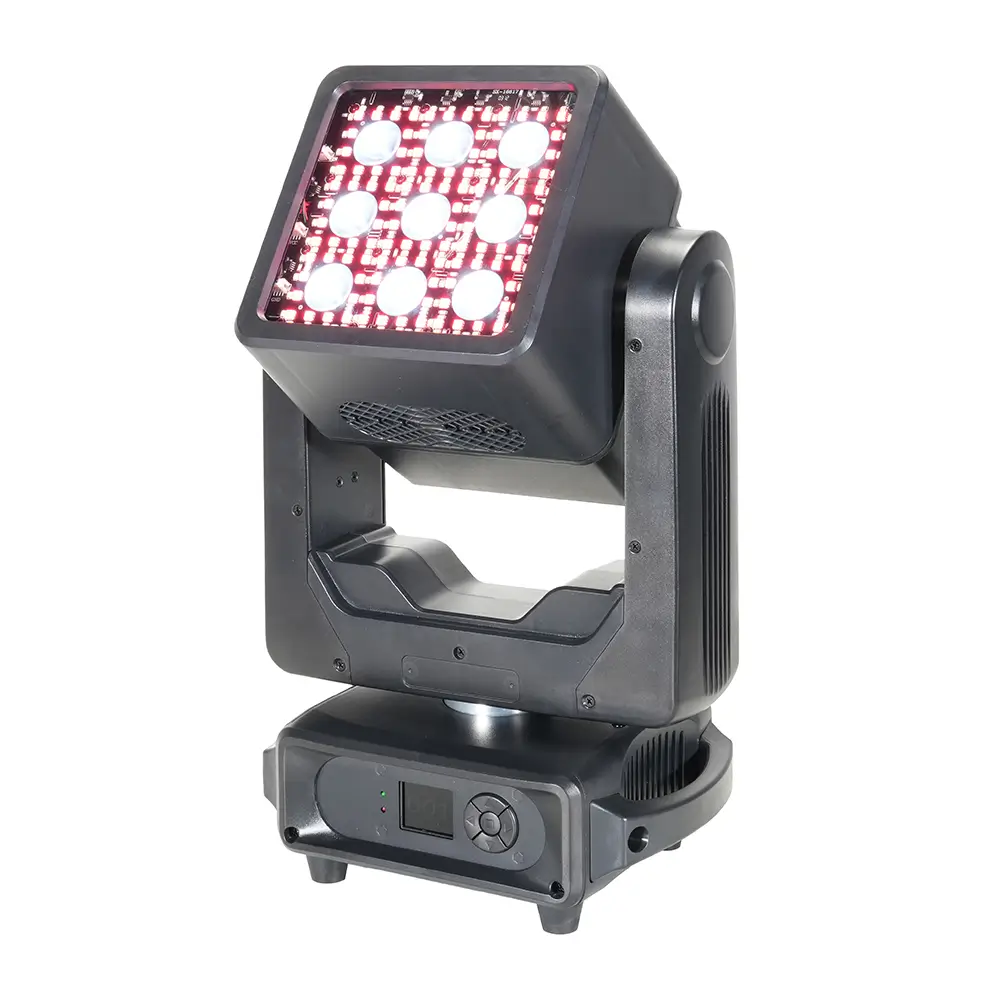

Side B: 9*10W White + 108*0.2W RGB LEDs + 96*1W Cool white LEDs for Beam, Strobe, FX
Pixel control LED: yes

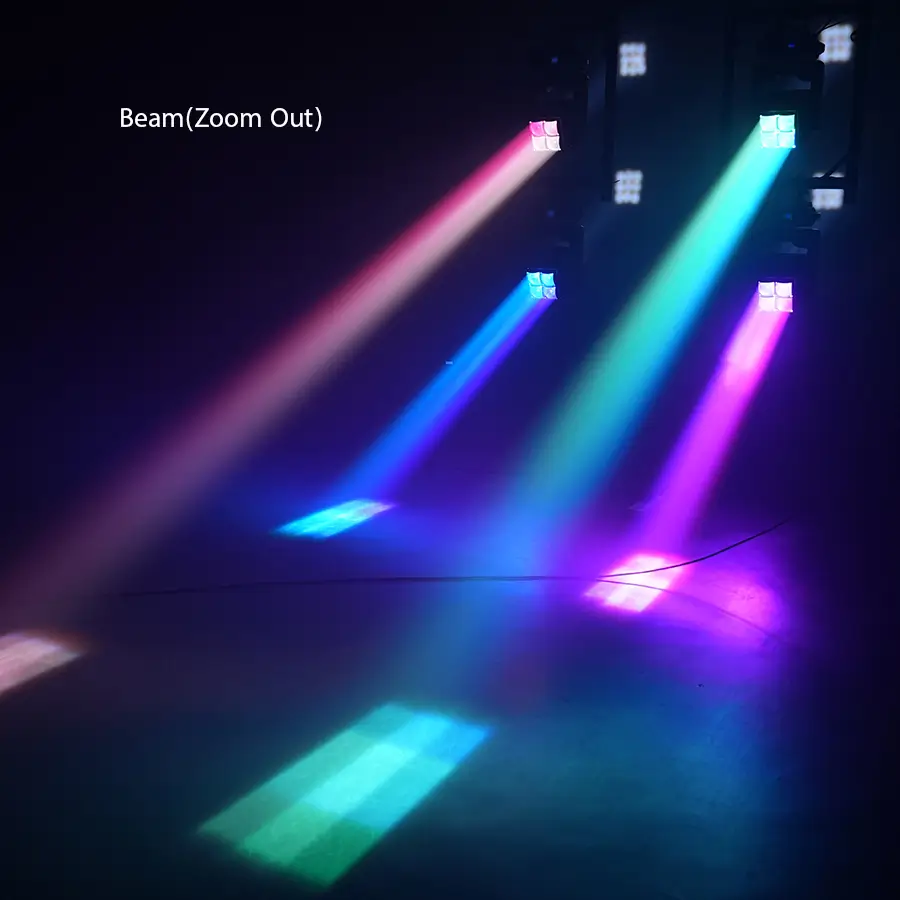

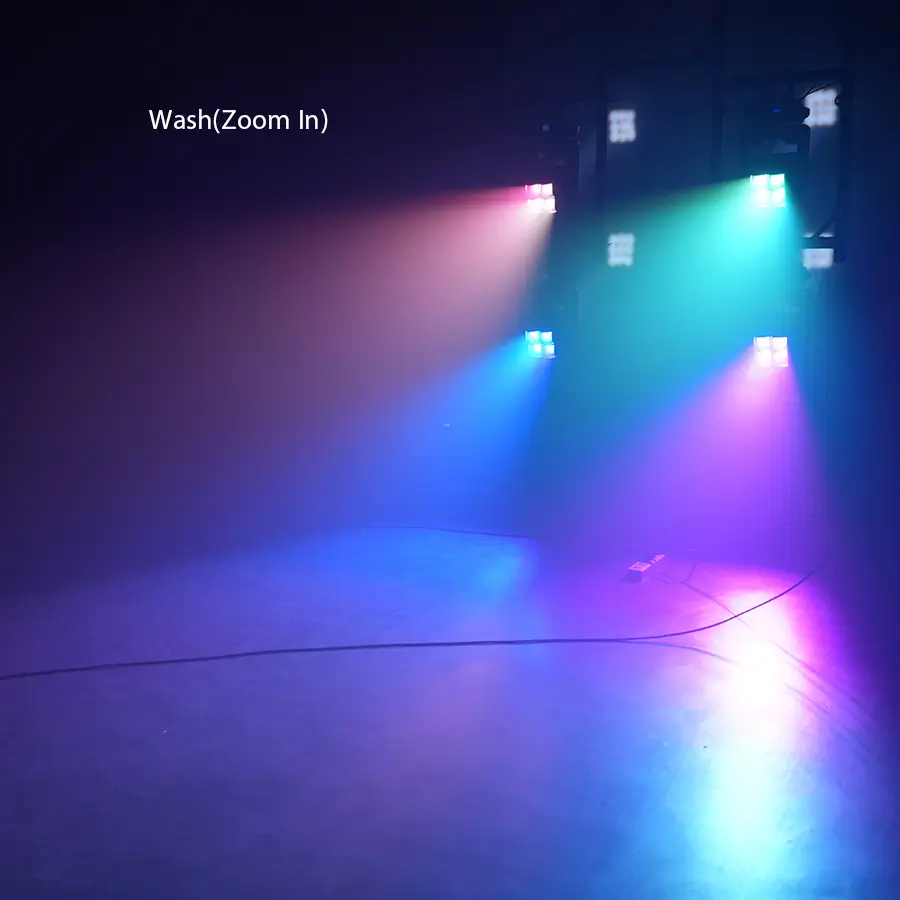

4° – 38° Motorized Zoom
DMX, Auto, Sound, Master/Slave
DMX channels: 38/42/67
Supports Artnet/sACN, RDM & DMX
Pan/Tilt: 540° / 540° , or unlimited
4 Dimming curves
8/16-bit dimmer
1-25 fps electronic strobe
5-button LCD display

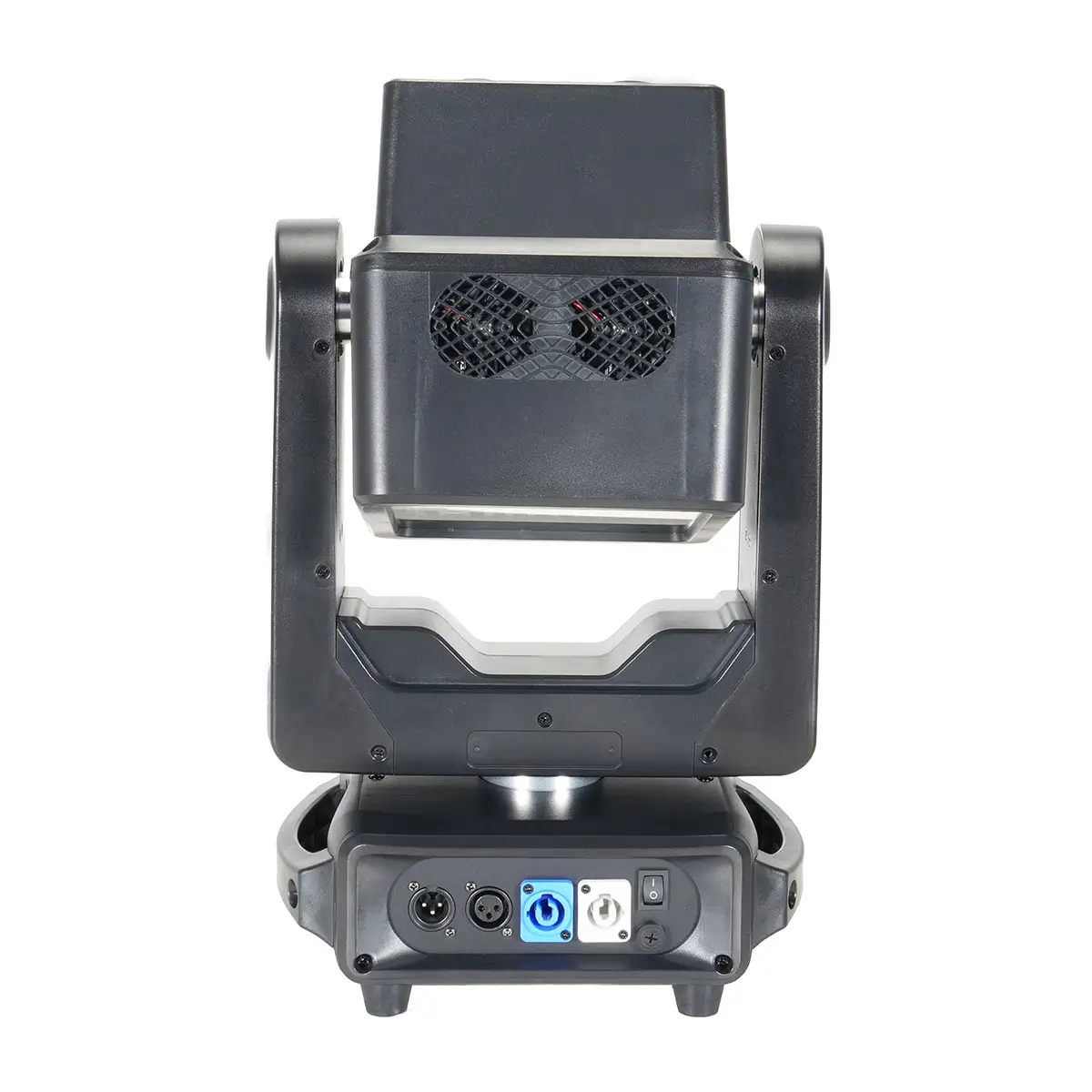

Signal connectors: 3-Pin/5-Pin XLR + Ethernet
Power connectors: PowerCon In & Out
IP20 for indoor use only
Power supply: AC 100~240V
Dimensions: 328 x 195 x 444 mm
Weight: 10.5 kg
